Schwabe electricity meters

No problem with ROCO electricity meters! According to § 31 of the German Measurement and Verification Act (MessEG), only meters that comply with calibration law may be used for electricity billing. ROCO electricity meters comply with the guidelines of the Council of the European Measuring Instruments Directive MID and are recognised for electricity billing. The use of non-compliant electricity meters for billing is an administrative offence that can be punished with a fine of up to 50,000 euros (§ 60).

approved for insurance cases, campsites, construction sites and agricultural businesses

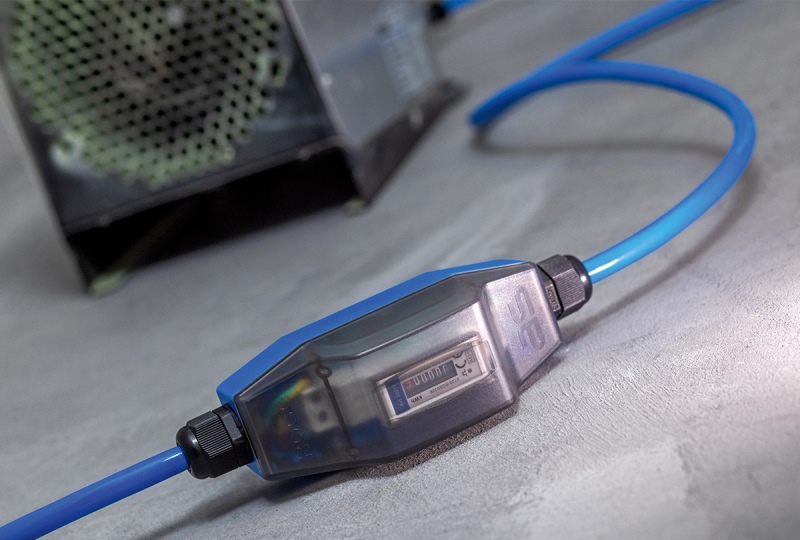

integrated electricity meter in compact housing made of highly break-resistant special plastic with viewing window for reading the roller counter
MID-compliant and suitable for billing purposes
Alternating current meter, 1-phase
Accuracy class 1/B

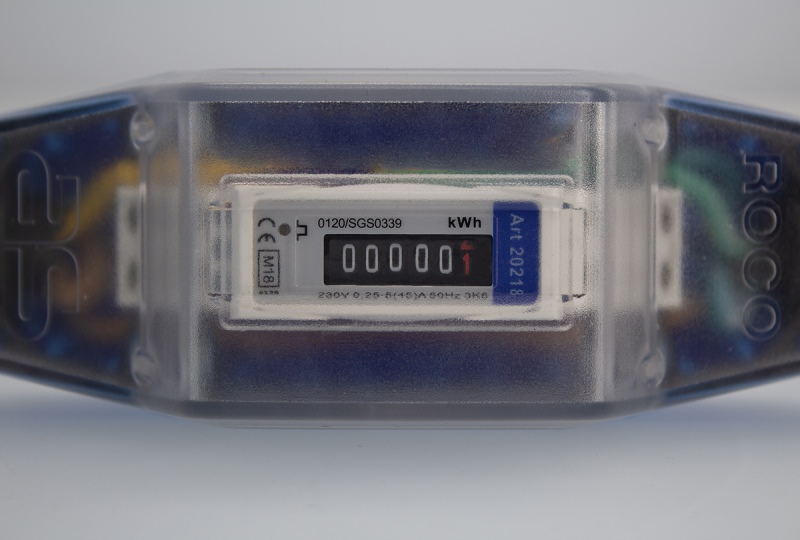

Analogue display: 5+1 digits, can be read at any time
Display for max. 99,999.9 kWh
Roller counter cannot be reset to 0
230 V, 16 A, max. 3.5 kW, 50 Hz
Current 0.25-5 A (max. 45 A)
Operating temperature from -25 °C to +55 °C
SDM 120 A, 230 V, 50 Hz
S0: 1000 imp/kWh
tested according to DIN EN 50525-2, DIN VDE 0620-2-1, IEC 60309, IEC EN 50470-1
IP44: protected against foreign bodies and splash water

Manufacturer "as - Schwabe GmbH"

as - Schwabe GmbH

Technik Produkte
Merkurstraße 10
72184
Eutingen im Gäu D
07457/94853-0
info@as-schwabe.de

More products from as - Schwabe GmbH

Article type:	Electricity meter
Brand:	as-Swabian
Display:	for max. 99,999.9 kWh
EC accuracy class:	1/B
IP protection class:	IP44
Mains voltage (V):	230
Manufacturer:	Swabian
WEEE registration number:	DE61303276
