Installation instructions:

Anchor nails (comb nails) Ø 4.0 mm must be used to connect joist hangers to wood or wood-based materials.

The maximum load on the joist hangers is only achieved with full nailing. Partial nailing with reduced load is also permissible.

The defined load is valid for the assembly condition shown (see diagram!). The requirements for edge and intermediate distances must be complied with in accordance with the applicable standard and the installation must be carried out accordingly in accordance with the approval!

Areas of application:

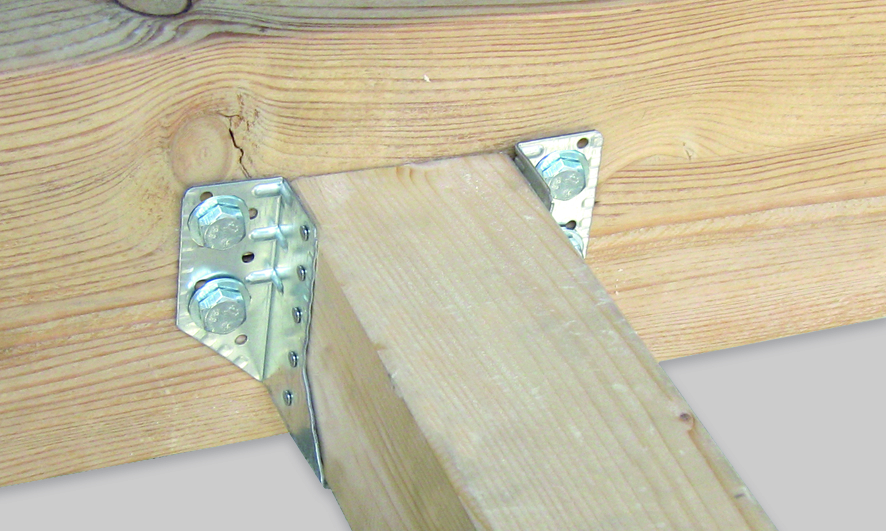

The external beam shoes are used to connect secondary beams to main beams or columns. This involves both the connection of timber components to each other and the connection of timber components to concrete or steel components. This is often done using so-called screw/nail combinations.

Manufacturer "SWG Schraubenwerk Gaisbach GmbH"
SWG Schraubenwerk Gaisbach GmbH


Am Bahnhof 50
74638
Waldenburg D
07942/100-0
bestellungen@swg.de
More products from SWG Schraubenwerk Gaisbach GmbH
Article type: Beam shoes
Authorisations: ETA-08/0184
Brand: SWG
Dimension A (mm): 120
Dimension B (mm): 160
Hardware material: Steel
Height (mm): 160
Hole Ø large (mm): 11
Hole Ø small (mm): 5
Manufacturer: SWG
Number of holes large (st): 6
Number of holes small (st): 40
Surface treatment of hardware: Sendzimir galvanised
Thickness (mm): 1.5
Width (mm): 120
Links:
Hersteller

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Skip image gallery

SWG beam shoe external vz 120x160x1.5mm

Product number: 7050530167
EAN: 4009146482462

€7.38

Content: 1 STÜCK

Delivery time of 4 business days once payment has been received
Minimum order:
  • 1 STÜCK
Container units:
  • 1 KILOGRAMM = 1 STÜCK
