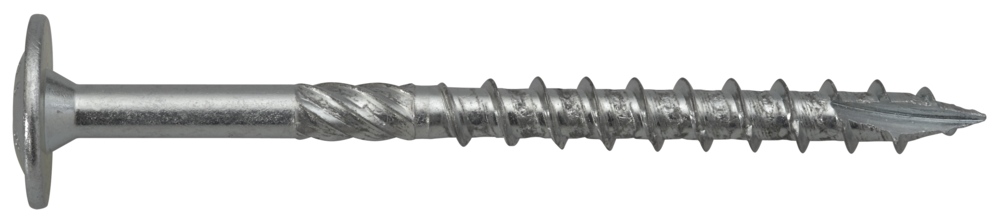

The wood construction screw with disc head is primarily used for wood-wood connections in structural timber construction (e.g. for roof rafter insulation, timber frame construction, roof truss construction, element construction, prefabricated construction, staircase construction, etc.). In damp rooms and outdoors, suitable materials or surface coatings must be used, such as stainless steel fasteners or hot-dip galvanised fasteners. (DIN 18360:2019-09). The user is responsible for the design.

Manufacturer "SWG Schraubenwerk Gaisbach GmbH"

SWG Schraubenwerk Gaisbach GmbH

Am Bahnhof 50
74638
Waldenburg D
07942/100-0
bestellungen@swg.de

More products from SWG Schraubenwerk Gaisbach GmbH

Article type:	Wood screws
Brand:	SWG
Contents (st):	100
Diameter (mm):	6
Head drive:	TX
Head shape:	Plate head
Length (mm):	220
Manufacturer:	SWG
Manufacturer designation:	Wood construction screw
Material screws:	Steel
Properties:	with underhead reinforcement and cutting notch, high-quality hardened steel
Shank milling ribs:	True
Standard:	ETA-12/0276
Suitable for wood:	True
Surface treatment of hardware:	Hardened, galvanised, slide-coated
Tested by building authorities:	True
Thread division:	Partial thread
Thread pitch:	Coarse thread
Thread type:	Wood thread
suitable for:	TX30
