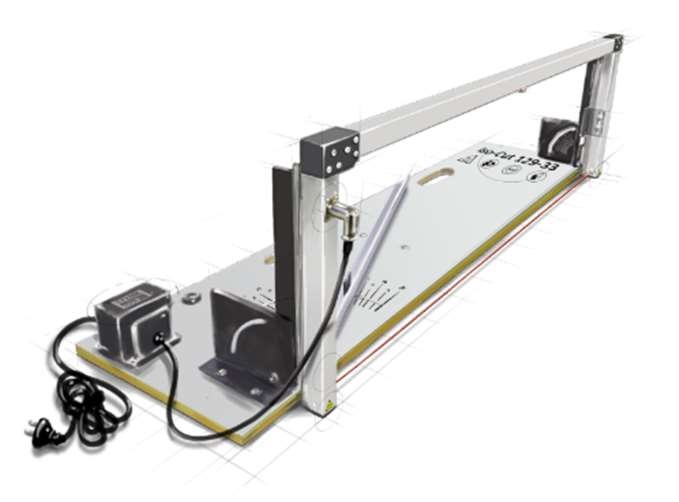

Glow wire cutter for polystyrene boards and similar insulating materials, stationary or mobile
can be used lying on a table or frame, or standing on the facade or on scaffolding,
cuts all standard board sizes effectively, cleanly and easily, ball-bearing side elements,
Depth limiter for step and rebate cutting, electrical connection from transformer to bracket via high-quality, splash-proof industrial XLR connectors,
incl. tool for changing the cutting wire and a cleaning brush

Powerful safety transformer with fuse switch (thermal fuse): 37 V / 160 watts / 230 V 50 / 60 Hz / IP 54
CNC-milled 13-layer waterproof screen printing plate
Length stop 0-90° infinitely adjustable
Anodised aluminium parts, stainless steel springs for adjusting the wire tension
Bevelled cuts from 15-90° (laser-cut angles)
Cutting thickness: 330 mm
Depth limiter for step, rebate and bevelled cuts
incl. 2 spare wires

Manufacturer "TRIUSO GmbH"

TRIUSO GmbH

Steeg 4
84428
Buchbach D
08086/9308-0
info@triuso.de

More products from TRIUSO GmbH

Article type:	Styrofoam cutting machine
Brand:	TRIUSO
Cutting length max. (mm):	1370
Cut variants:	Step cuts, rabbet cuts, bevel cuts
Drive technology machines:	Electrical
Manufacturer:	Triuso
Max. cutting depth (mm):	330
Model:	STYROPOR5
Power (W):	160
Scope of delivery:	2x spare wires
Suitable for:	Styrofoam
Supply voltage (V):	230
WEEE registration number:	DE60750650
