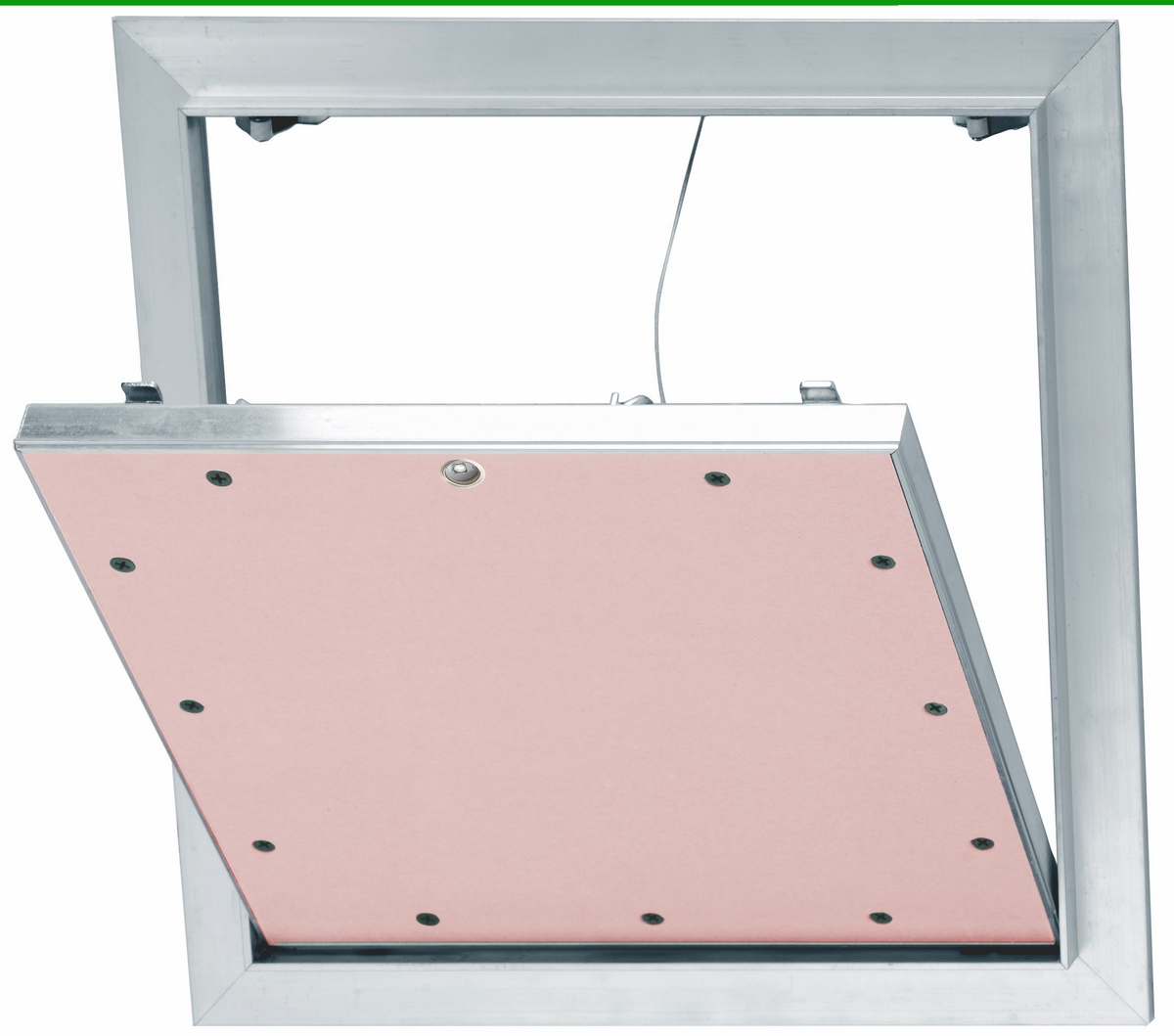

Upmann AluStar Airproof access panel
- AluStar 30 for suspended ceilings with fire protection
- Screwed gypsum plasterboard GKF
- Smoke-tight in accordance with DIN 18095-2:1991-09
- Airproof in accordance with DIN EN 14351-1, pressure: class 3, suction: class 2 Class 2
- Approval by abZ/ aBG from DIBt, Berlin Z-6.55-2588
- Fire protection only with fire protection pack in place
- Locking with square lock and snap locks
- Flap can be completely removed
- Including safety catches
- Also available with "cylinder + KRS" on request
Manufacturer "Upmann GmbH & Co. KG"
Upmann GmbH & Co. KG
Weidenweg 20
33397
Rietberg D
05244/985-0
upmann@upmann.eu
Weidenweg 20
33397
Rietberg D
05244/985-0
upmann@upmann.eu
| Application area drywall construction: | Ceiling |
|---|---|
| Article type: | Inspection flap |
| Brand: | Upmann |
| Drywall material: | Aluminium |
| Fire resistance class according to DIN 4102-2: | F 30 |
| Inner width (mm): | 582 |
| Insert: | true |
| Insert thickness (mm): | 25 |
| Inside length (mm): | 561 |
| Manufacturer: | Upmann |
| Material insert: | GKF |
| Model: | Airproof 30 |
| Outer length (mm): | 645 |
| Outer width (mm): | 645 |
| Series: | AluStar |
| Hersteller |
0 of 0 reviews
Average rating of 0 out of 5 stars
Login
No reviews found. Share your insights with others.
Upmann access panel AluStar Airproof F30 ceiling 25mm GKF 600x600mm w. 4-Kt.
Product number:
3001070790
EAN:
4005046202643
€575.96
Content:
1
STÜCK
Delivery time of 4 business days once payment has been received
