Upmann Vario-Star inspection door
60x30cm wall installation - 22749
60x30cm wall installation - 22749

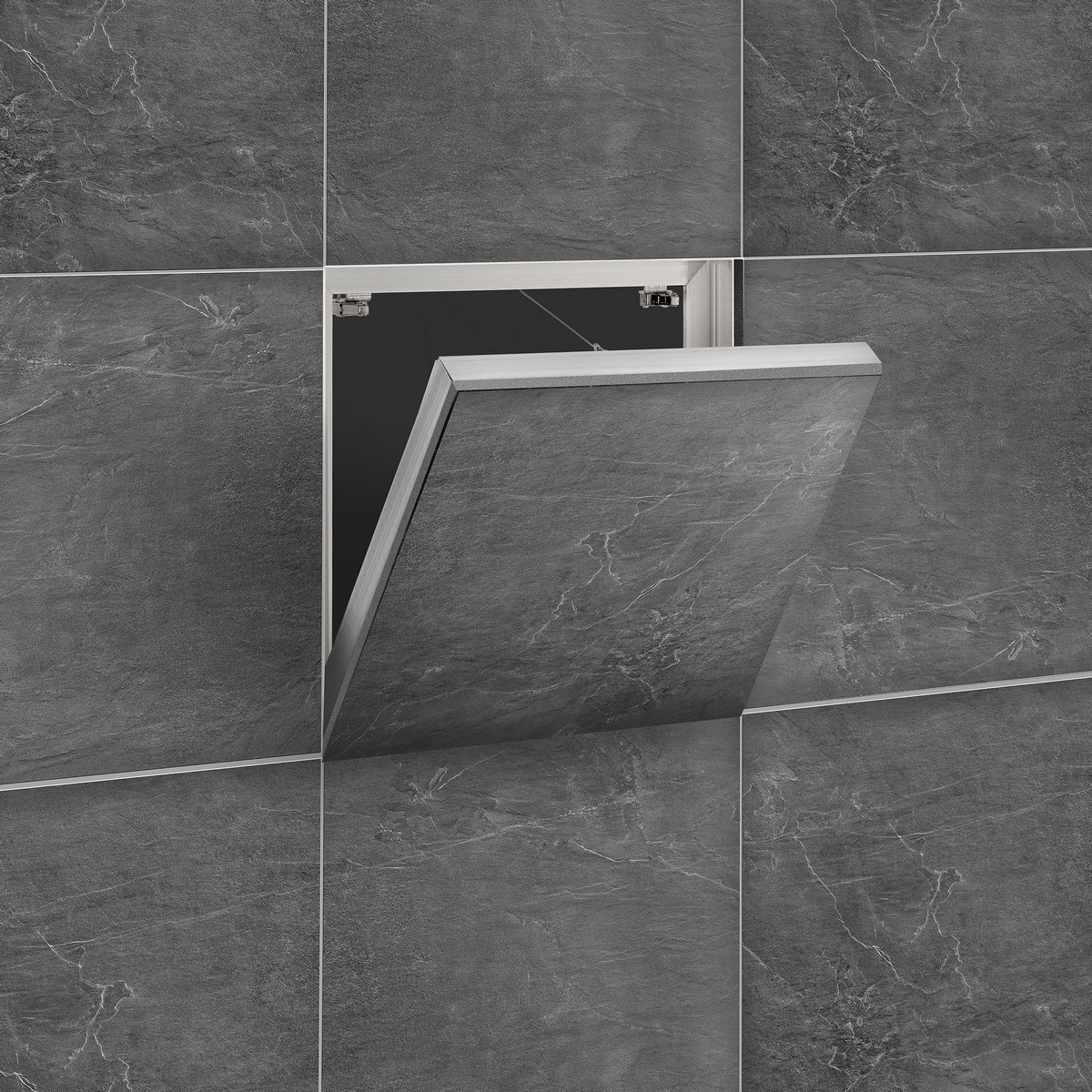

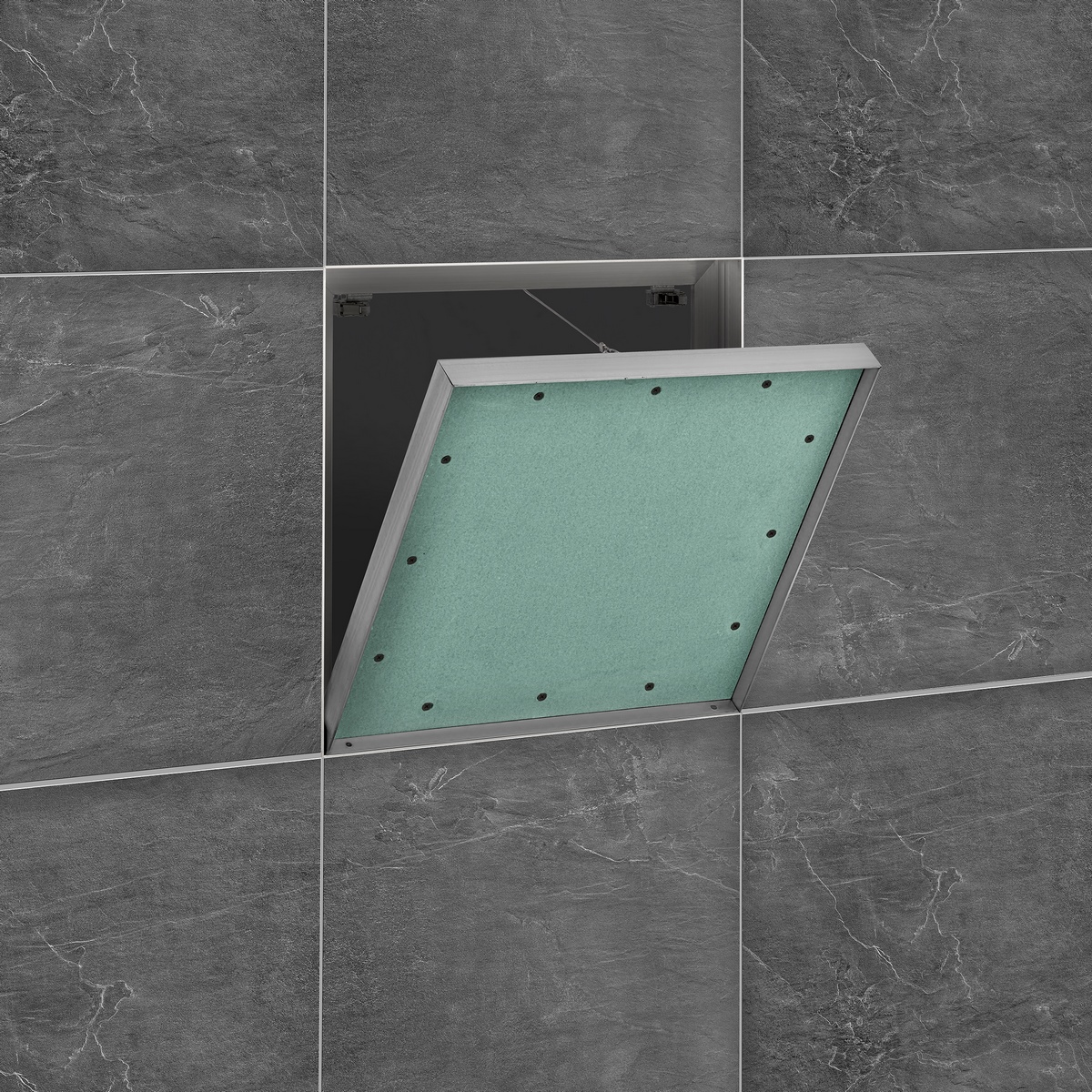

The VarioStar inspection door for tiling is the perfect door for closing openings in a tiled wall. The door is supplied with an insert (GK) of 12.5 and 15 mm, the inserts can be unscrewed individually and can be replaced with other materials on site
- Inlays 12.5 + 15.0 mm (screwed into the door leaf one above the other)
- Inlays can be unscrewed individually, can be exchanged with other materials on site
- Slide-in solution
- Removable flap
- without seal
- With centring bolt
- Aluminium profile with galvanised connecting elements
- Including safety catches
- EasyLock wall anchors can be fitted on all sides
- Opens and closes by pressing on the door leaf
- Stop always at the bottom, stop side = width
Manufacturer "Upmann GmbH & Co. KG"
Upmann GmbH & Co. KG
Weidenweg 20
33397
Rietberg D
05244/985-0
upmann@upmann.eu
Weidenweg 20
33397
Rietberg D
05244/985-0
upmann@upmann.eu
| Application area drywall construction: | Wall & ceiling |
|---|---|
| Article type: | Inspection flap |
| Brand: | Upmann |
| Depth (mm): | 59 |
| Drywall material: | Aluminium |
| Inner width (mm): | 298 |
| Insert: | true |
| Insert thickness (mm): | 27,5 |
| Inside length (mm): | 300 |
| Manufacturer: | Upmann |
| Material insert: | GK |
| Outer length (mm): | 600 |
| Outer width (mm): | 598 |
| Series: | Vario-Star |
