Applications
Thermal insulation for flat and slightly pitched roofs in old and new buildings

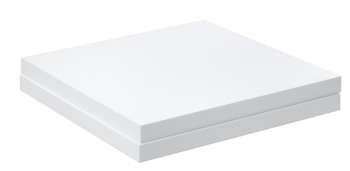

Product description

Compressive thermal insulation made of EPS
As a customised product with tongue and groove connection for corresponding object size

Technical data

Quality type according to BFA guideline
CE marking according to DIN EN 13163
EPS types 100, 150, 200
Thermal conductivity: rated value 0.035 W/mK
B1 flame-retardant (The building material class DIN 4102-B1 only applies when the insulation materials are used
Insulation materials in a horizontal arrangement as visible ceiling panelling with a thickness
= 80 mm or under screeds and in a vertical arrangement)
Recyclable

Manufacturer "HIRSCH Porozell GmbH"

HIRSCH Porozell GmbH

Werk Rheda
Augsburger Straße 8-10
33378
Rheda-Wiedenbrück D
05242 9608-0
office.deutschland@hirsch-gruppe.com

Area of application Insulation materials:	Flat roof
Area of application Insulation materials according to DIN 4108-10:	DAA dh
Article type:	Flat roof insulation board
Brand:	HIRSCH, HIRSCH Porozell
Contents (st):	24
Edge formation Insulation materials:	Stump
Fire protection class:	E
Hint:	white, compressive strength 150 kPa (at 10 % compression)
Insulation material:	EPS (expanded polystyrene)
Length (mm):	1000
Manufacturer:	Deer
Manufacturer designation:	Flat roof insulation board
Nominal value of thermal conductivity ?D (W/mK):	.034
Rated value of thermal conductivity ? (W/mK):	.035
Series:	EPS 035 DAA dh 150 SK
Surface insulation materials:	smooth
Thermal conductivity group:	WLG 035
Thickness (mm):	20
Use of insulating materials:	External insulation of roof or ceiling, protected from weathering, insulation under waterproofing - high compressive strength (dh)
Width (mm):	1000
