Applications
Thermal insulation for flat and slightly pitched roofs in old and new buildings

Product description

Pressure-resistant thermal insulation made of EPS with circumferential stepped seam
As a customised product with tongue and groove connection for corresponding object size

Technical data

Quality type according to BFA guideline
CE marking according to DIN EN 13163
EPS types 100, 150, 200
Thermal conductivity: rated value 0.035 W/mK
B1 flame retardant (The building material class DIN 4102-B1 only applies when the insulation materials are used
Insulation materials in a horizontal arrangement as visible ceiling panelling with a thickness
= 80 mm or under screeds and in a vertical arrangement)
Recyclable

Manufacturer "HIRSCH Porozell GmbH"

HIRSCH Porozell GmbH

Werk Rheda
Augsburger Straße 8-10
33378
Rheda-Wiedenbrück D
05242 9608-0
office.deutschland@hirsch-gruppe.com

Area of application Insulation materials:	Floor
Area of application Insulation materials according to DIN 4108-10:	DEO dh

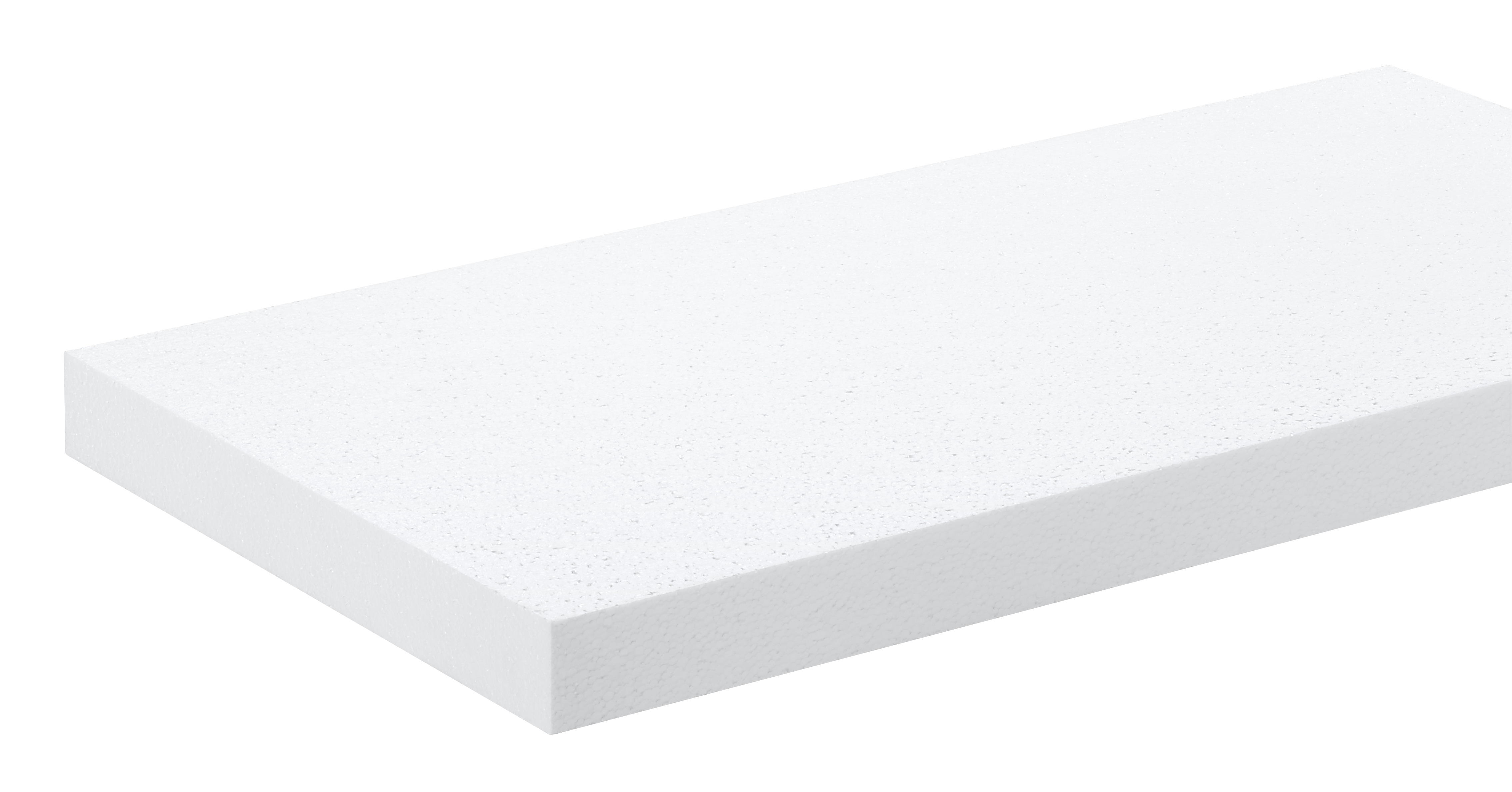

Article type:	Flat roof insulation board
Brand:	Deer
Coating Insulation materials:	No
Compressive stress (kPA):	150
Edge formation Insulation materials:	Stump
Fire protection class:	E
Insulation material:	EPS (expanded polystyrene)
Length (mm):	1000
Manufacturer:	IsoBouw
Manufacturer designation:	Thermal insulation board
Nominal value of thermal conductivity ?D (W/mK):	.034
Rated value of thermal conductivity ? (W/mK):	.035
Thermal conductivity group:	WLG 035
Thickness (mm):	20
Use of insulating materials:	Floor insulation, screed insulation
Width (mm):	500
