Venduct® DN 100 ventilation pipe

The aerodynamically optimised ventilation of the Venduct® room ventilator through pipe geometry,
Air guide ring and rain bonnet reduces turbulence to a minimum and ensures effective exhaust air
Exhaust air performance - especially with fan-assisted exhaust air. Any condensate
is safely discharged to the outside above the roof covering by means of a condensate gutter.

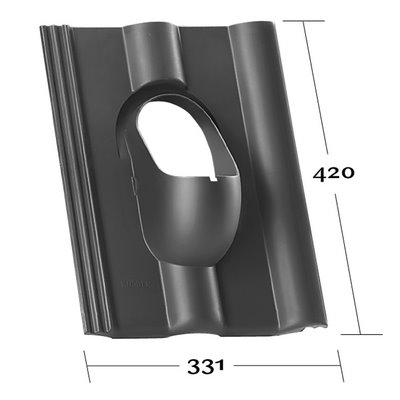

The Venduct® room air vent - suitable for Venduct® base plates and Venduct® universal base plates
- is suitable for motorised ventilation in kitchens and bathrooms in accordance with DIN 18017 or as a waste water pipe aerator
venduct® room air vents can be used for any roof made of clay tiles, concrete roof tiles, slate and corrugated sheets,
Slate and corrugated sheets.

Safety information:
In winter, condensation can form on the weather cap, the vapour pipe itself and/or on the roof passage pipe in unfavourable weather conditions
itself and/or on the roof tile. To prevent uncontrolled slipping, we recommend
suitable safety measures, such as the installation of two snow guard hooks in the watercourses of the through tile
and/or the underlying pan.

Recommendation:
Weather cap up: active ventilation (e.g. with fans) of rooms or appliances.
Weather cap off: Ventilation of waste water pipes.

Manufacturer "BMI Deutschland GmbH"

BMI Deutschland GmbH

Marke Klöber
Scharpenberger Str. 72-90
58256
Ennepetal D
+49 6104 8010 1700
info.kloeber@bmigroup.com

More products from BMI Deutschland GmbH

Article type:	Ventilation and deaeration pipe
Brand:	Klöber
Colour:	black
Diameter (mm):	100.0
Manufacturer:	Klöber
Manufacturer designation roof system parts:	Vent pipe
Material roof system parts:	Plastic
Material specification roof system parts:	Special PVC
Series:	Venduct®
Weight (kg):	0.88
suitable for:	Connection 100 mm with joint and rain cover
